Close-Range Sound
—

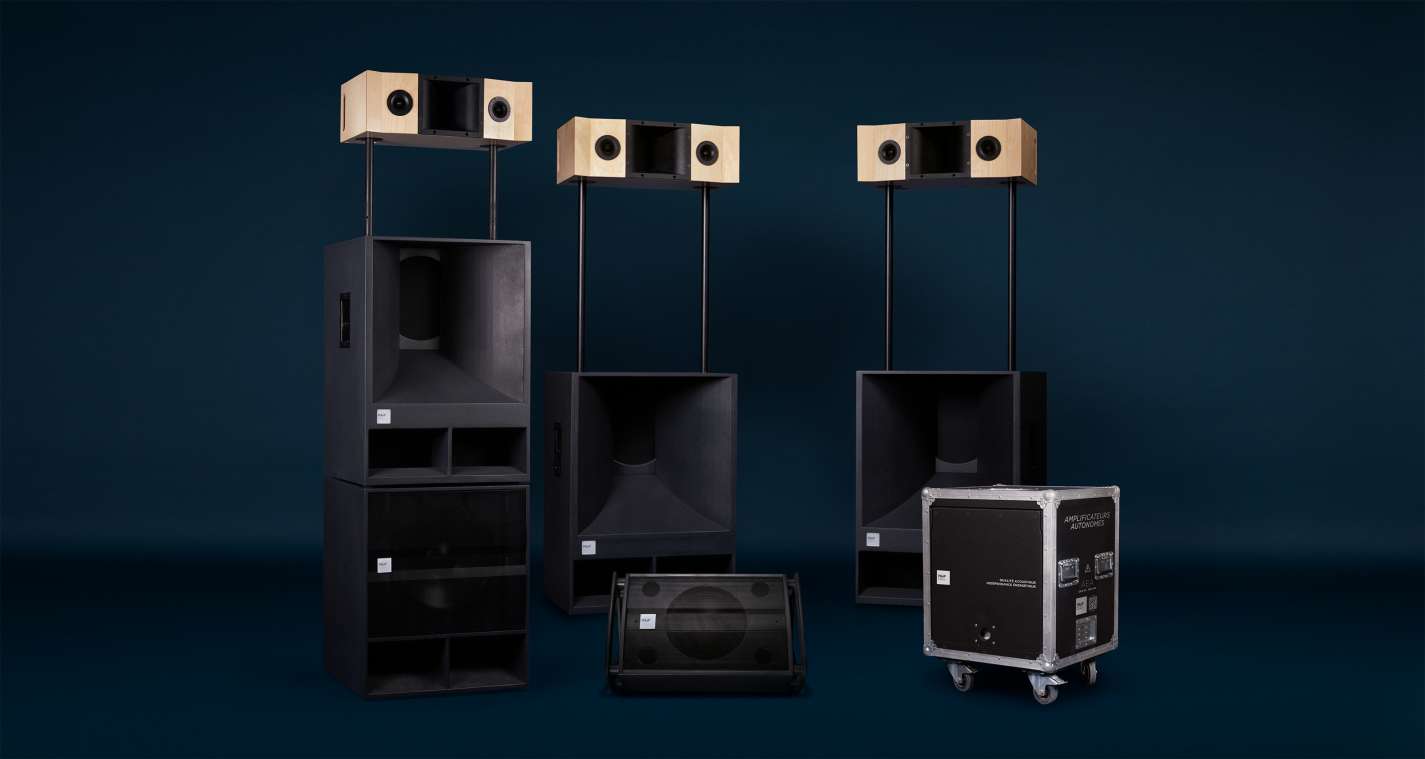

The PikiP-Stage series consists of 'point source' modules for versatile stages of up to 800 people. Paired with an AEA or SE module from the Energy range, it ensures full autonomy without the need for a fuel-powered generator.

Availability
Gamme acoustics

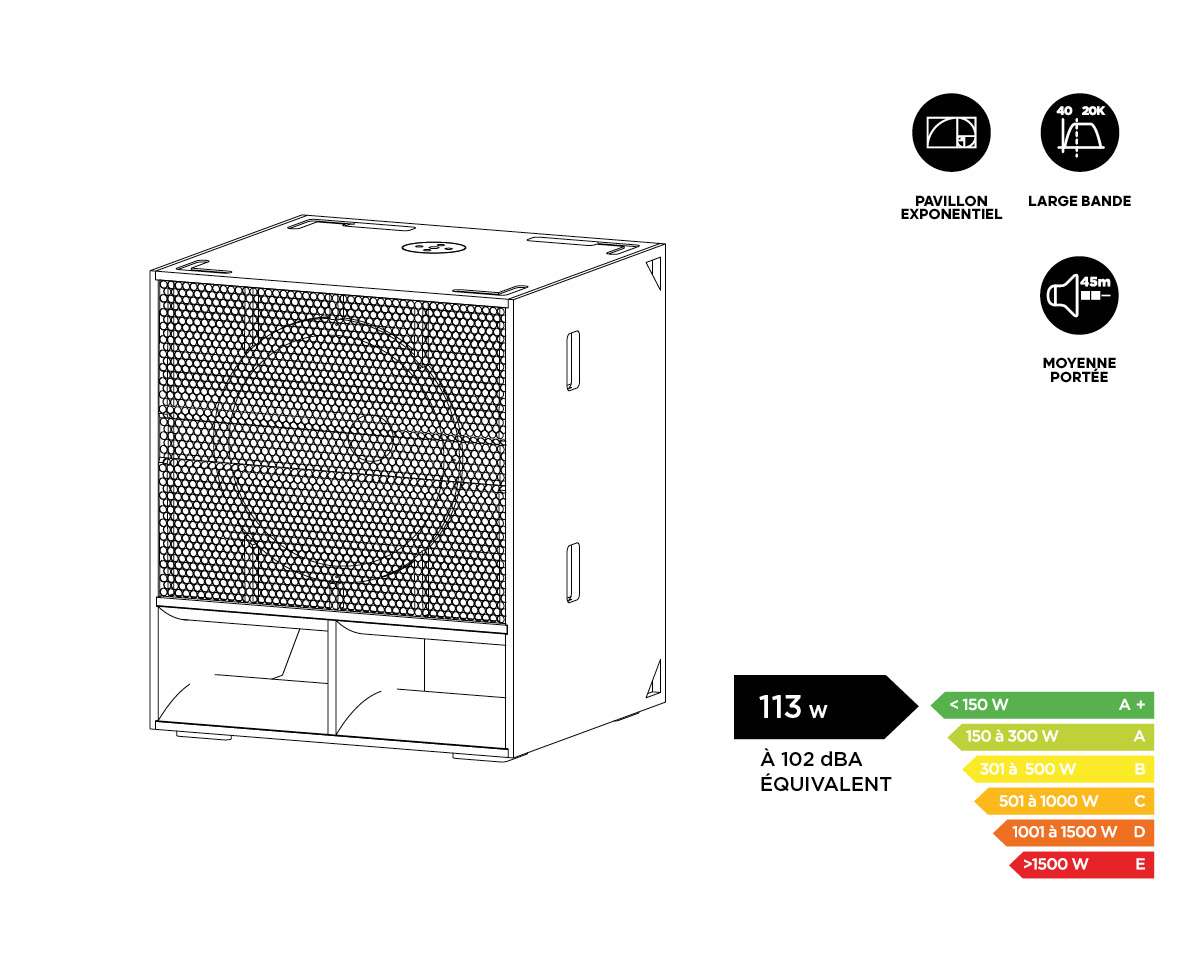

VTL118
—

+ HIGH-EFFICIENCY SUBWOOFER
Hybrid bass-reflex with quarter-wave resonator
+ LARGE PROFILED VENT
Maintains efficiency at high levels
+ TOURING DESIGN
Easy transportation
+ PSEUDO-OMNIDIRECTIONAL
Facilitates cardioid setups


Bass is crucial, both for listening and power requirements. Its hybrid typology (Vented Transmission Line) offers the best in terms of energy efficiency, delivering fast and deep bass reproduction. Combined with our profiled vent technology that eliminates distortions at high levels, the listening experience remains impactful and energy-efficient [A+: 113W at 102 dBA*]. Weighing 48 kg with handles and 35 mm pole sockets, this model can be used as a bass reinforcement in various setups. The VTL118 is designed with a pseudo-omnidirectional pattern to facilitate cardioid gradient mounting.

caractéristiques

Type :
Hybrid Subwoofer: Quarter-wave resonator + bass reflex with profiled vent
FREQUENCY RESPONSE :
35 - 125 Hz (+/-3 dB)
CONTINUOUS POWER HANDLING :
1400 W (nominal program power capacity + 3 dB)
SENSITIVITY :
105 dB (@ 1 W cst, 1 m) / 103 dB (@ 2,83 V cst, 1 m)
MAX SPL :
134 dB SPL (@1 m, pink noise 6 dB crest factor)
TRANSDUCERS :
18” néodym driver
Impedance :
8 ohm
Dimensions (lxpxh) :
800x610x680 mm
weight :
48kg

DATASHEET VTL118

doc
FICHE TECHNIQUE - PIKIP - ACOUSTICS - VTL118 - FR

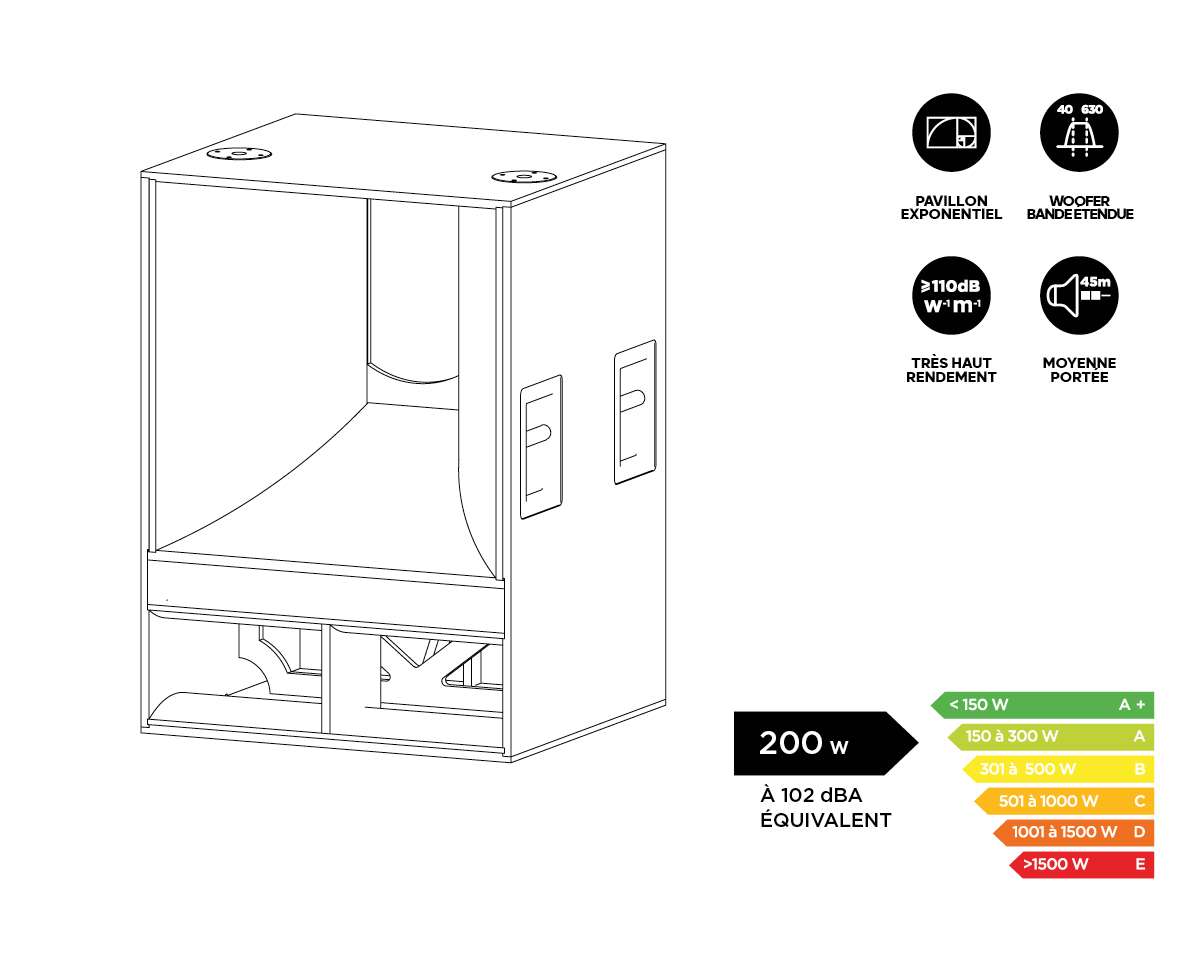

VDS115
—

+ EXPONENTIAL HORN
Dynamic and precise kicks and mids
+ REAL DESCENT TO 45 Hz
Profiled vent with low particle velocity
+ EXTENDED RANGE
Rises up to 800 Hz
+ TOURING DESIGN
Handles, rigging systems, pole mounts, skateboard wheels


The VDS115 is the touring version of the VDS. Lighter and more manageable than its larger counterpart, the VDS-115 delivers an incredibly dynamic midrange response with a linear descent down to 45Hz. Ideal for mobile setups and touring, the VDS115 weighs only 42kg. Its compact design facilitates easy transport and setup. Reinforced corners and contact surfaces make it compatible with the demanding constraints of touring.

caractéristiques

Type :
Full-range woofer + bass reflex with profiled vent
FREQUENCY RESPONSE :
45 - 800 Hz (+/-3dB)
CONTINUOUS POWER HANDLING :
1000 W (nominal program power capacity + 3 dB)
SENSITIVITY :
104 dB (@ 1 W cst, 1 m) / 103 dB (@ 2,83 V cst, 1 m)
MAX SPL :
133 dB SPL (@1 m, pink noise 6 dB crest factor)
TRANSDUCERS :
15” néodym driver
Impedance :
8 ohm
Dimensions (lxpxh) :
680x610x950mm
weight :
42kg

DATASHEET VDS115

doc
FICHE TECHNIQUE - PIKIP - ACOUSTICS - VDS115 - FR

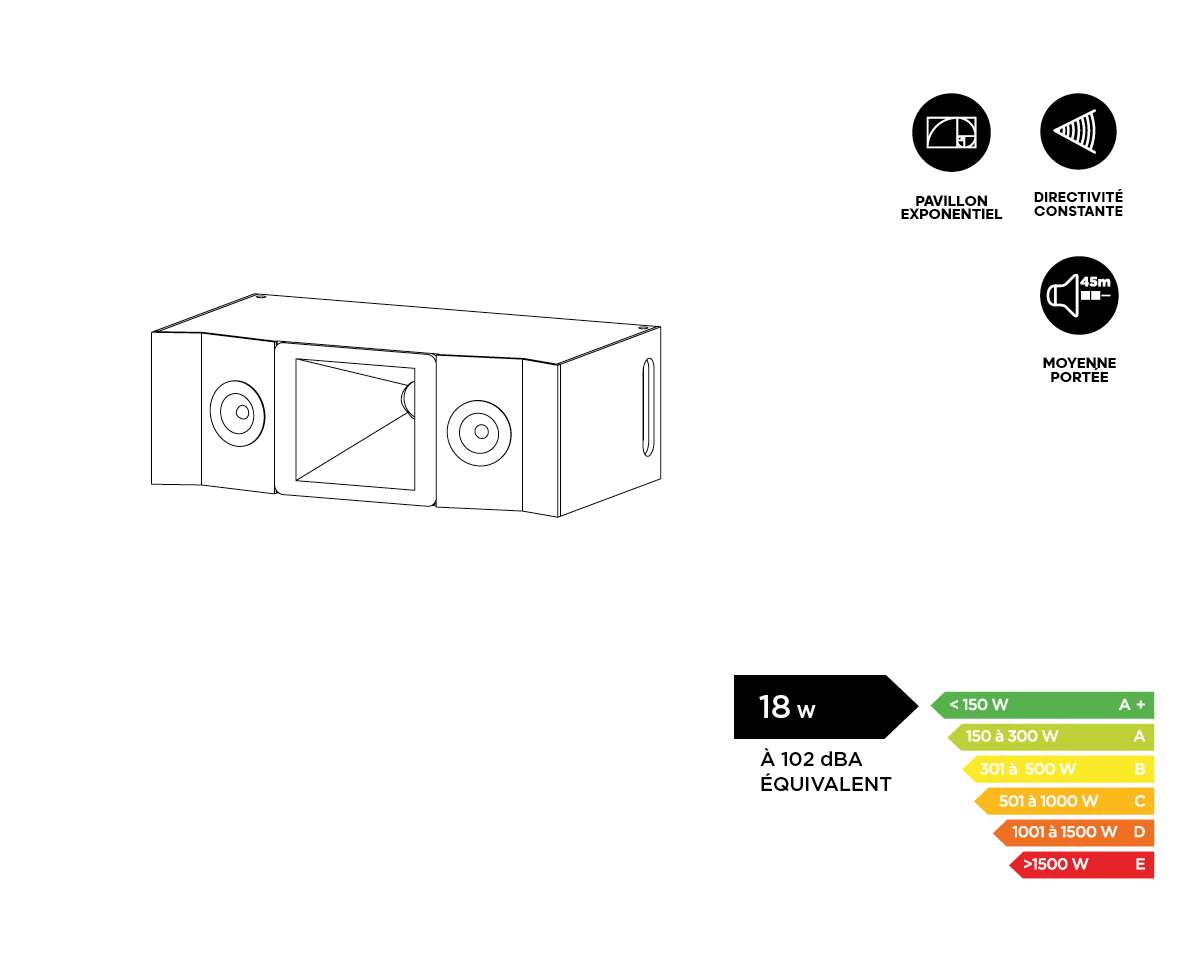

MT1
—

+ PLAYS DOWN TO 500 Hz
Easy crossover to MF speaker
+ CONSTANT DIRECTIVITY HORN LOADING
60° horizontal directivity
+ LOW DISTORTION AND VERY GOOD INTELLIGIBILITY
2’’ compression driver
+ IDEAL FOR TOURING
Handles, rigging system, speaker stand ready


The MT-1 is our speaker for high mids and highs: detailed and precise, it faithfully reproduces every nuance of the original message. Its design and filtering enable a descent down to 500Hz with minimal distortion even at high levels. Weighing 14kg with handles and 35mm pole sockets, this model adapts to both mobile and static installations.

caractéristiques

Type :
Mid-Top Pavillon et Tweeter
Réponse :
500 - 20 000 Hz (+/-3dB)
Puissance :
540 W (puissance nominale +3dB)
Sensibilité :
109 dB (à 1 W cst, 1 m) / 111 dB (à 2,83 V cst, 1 m)
NIVEAU SPL MAX :
138 dB à puissance nominale +3 dB
Dispersion :
60° x 40° (H° x V @-6 db depuis l’axe)
hp :
2’’ moteur de compression + 2 x tweeter 1,25’’
Impédance :
8 ohm
Construction :
CP bouleau 9mm / Warnex ou vernis
Dimensions (lxpxh)  :
680x370x230mm / 14 kg

DATASHEET MT1

doc
FICHE TECHNIQUE - PIKIP - ACOUSTICS - MT1 - FR

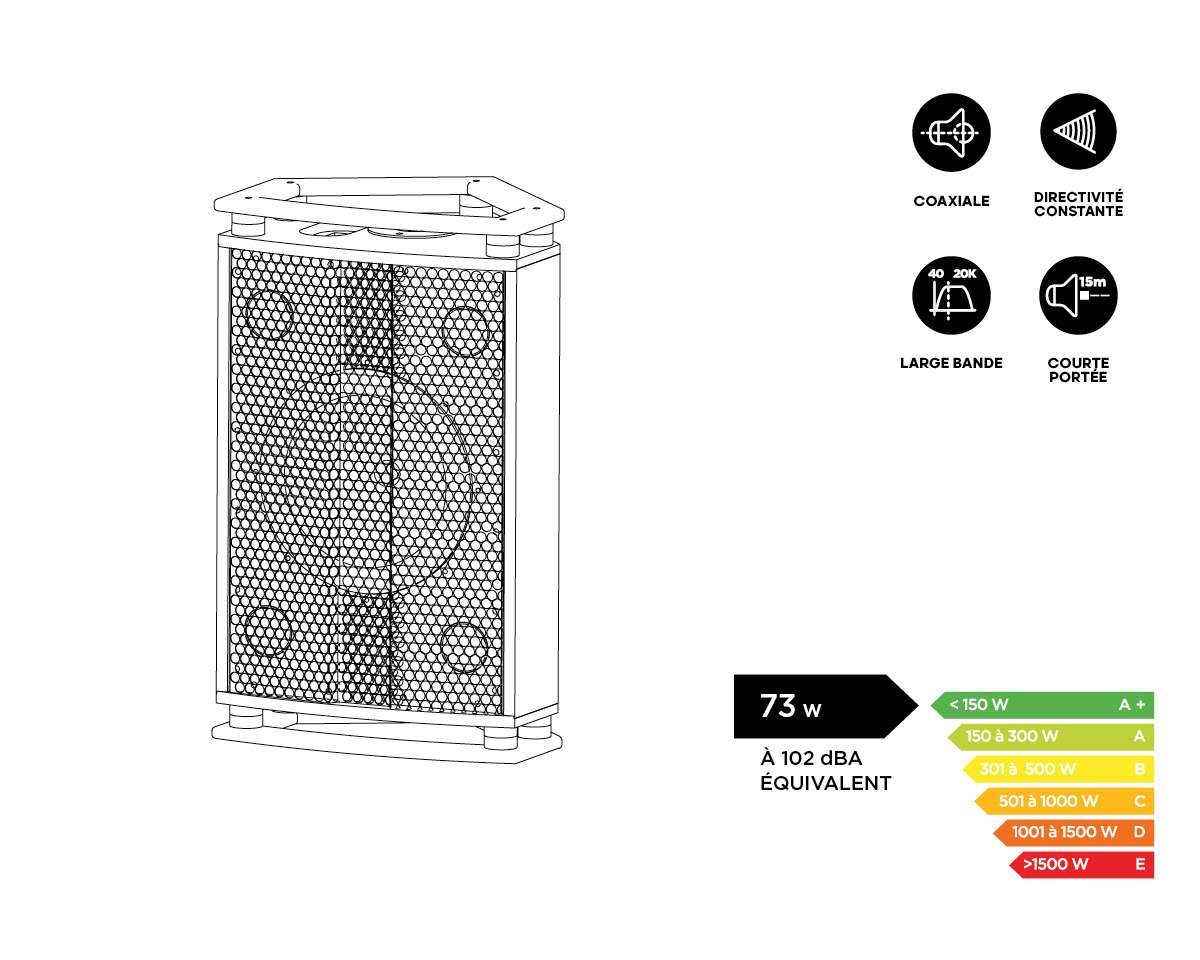

VCX12
—

+ UTILISATION POLYVALENTE
Retour bain de pied, rappel, diffusion principale
+ ENCEINTE LARGE BANDE
HP électrodynamique 12’’ + moteur de compression 2’’
+ SYSTÈME COAXIAL
Source unique : cohérence et linéarité acoustique
+ CONCEPTION TOURING
Léger, résistant, facile à manipuler


Cette enceinte large bande est un système coaxial ultra-polyvalent. Utilisable seule pour des prises de parole, en façade avec un subwoofer VTL118, ou en front fill et retour artistes, elle s’adapte à tous les usages. Sa conception permet une installation sur mât ou en bain de pieds avec une inclinaison de 30° ou 45°. Sa structure renforcée en contreplaqué de bouleau et ses larges poignées périphériques en font un module léger et facile à manipuler.

caractéristiques

Type :
Mid-Top Pavillon et Tweeter
FREQUENCY RESPONSE :
65 - 18 000 Hz (+/-3dB)
CONTINUOUS POWER HANDLING :
540 W (nominal program power capacity + 3dB)
SENSITIVITY :
100 dB (@1 W cst, 1 m) / 99 dB (@2,83 V cst, 1 m )
MAX SPL :
138dB SPL (@1m, pink noise 6dB crest actor)
Dispersion :
80° x 80° (H° x V @-6 db depuis l’axe)
transducers :
Compression drivers 2’’ + 2 tweter 1,25’’
Impédance :
8 ohm
Dimensions (lxpxh)  :
680x370x390mm / 14 kg

DATASHEET VCX12

doc
FICHE TECHNIQUE - PIKIP - ACOUSTICS - VCX12 - FR
