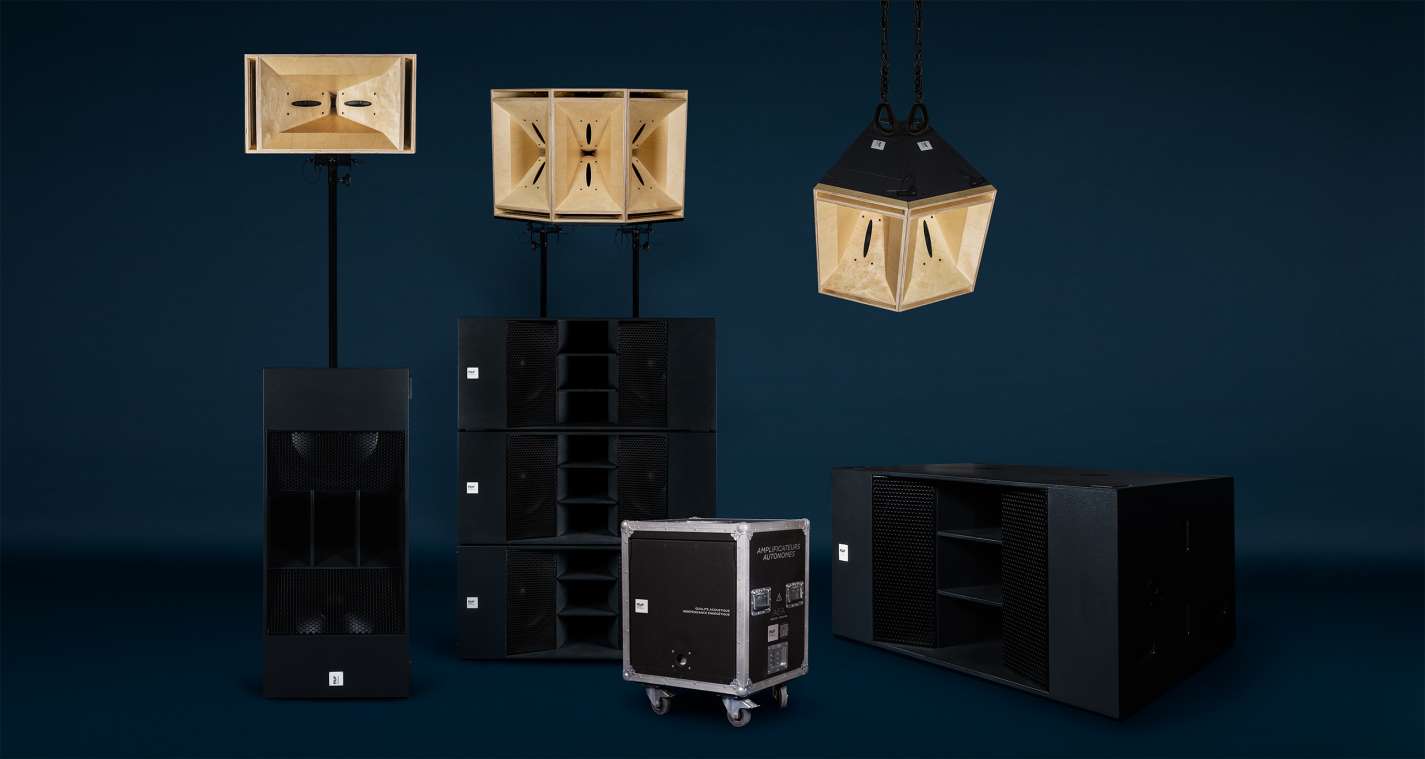

Long-Range Sound
—

The PikiP-Stage-LT series is optimized for energy-efficient stages of up to 2,000 people while keeping off grid. Built on constant curvature technology and high-efficiency subwoofers, it meets the demands of professionals.

Availability

Gamme acoustics

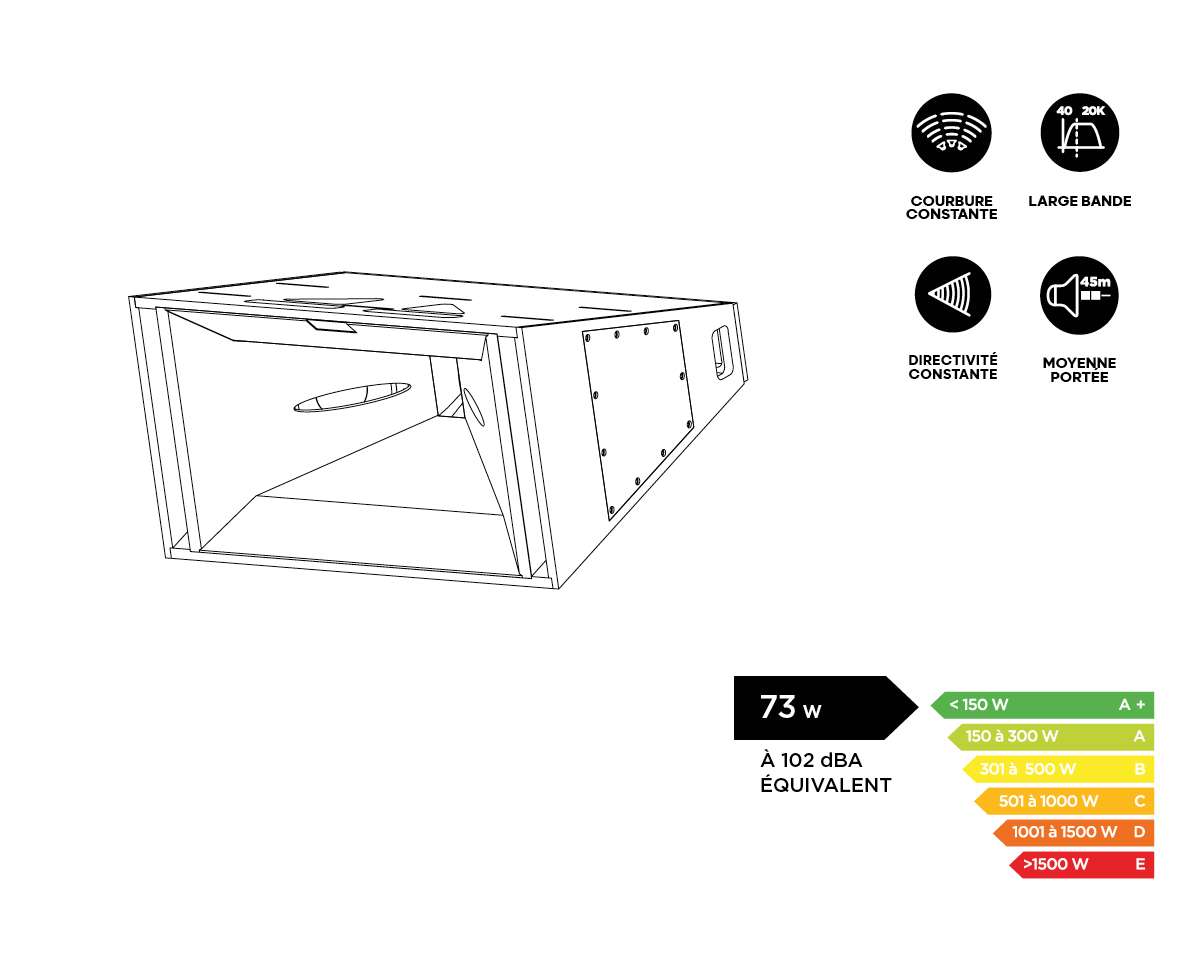

VCH30
—

+ CONSTANT CURVATURE
Directivity varies with the number of modules.
+ CONSTANT DIRECTIVITY
90° x 30° conical-exponential horn..
+ 2-WAY PASSIVE FILTERING
Two 8’’ speakers + 1,4’’ compressioon driver
+ TOURING DESIGN
Hanging and rigging system, mast sockets.

Wideband constant curvature speaker is designed to meet diffusion needs up to 45 meters: the solution to outperform point source limitations while avoiding the use of Line Arrays. Modular and versatile, the VCH30 can be coupled to increase directivity and audience capacity. It pairs perfectly with the VTL218 subwoofer for full and powerful coverage.
Compact, elegant, and robust, this speaker meets PikiP’s essential energy efficiency criterion, with low distortion and reduced amplification needs.

caractéristiques

Type :

Constant curvature wideband, vented horn

Frequency Response :

85 – 18 000 Hz (+/-3 dB)

Power :

600 W, LF / 240 W, HF (nominal power +3dB)

Sensitivity :

103 dB (@1 W cst, 1 m, LF) / 112 dB (@1 W cst, 1 m, HF)

MAX SPL :

132 dB (1 m, pink noise, 6 dB crest factor)

Dispersion :

90° x 30° (H° x V @-6 db)

transducers :

2x HP 8’’ + 1,4’’ compression

Impedance :

16 ohm

Construction :

CP bouleau 15mm / Warnex ou vernis

Dimensions (lxpxh) :

680x540x380mm / 22 kg

DATASHEET VCH30

FICHE TECHNIQUE - PIKIP - ACOUSTICS - VCH30 - FR

DATASHEET - PIKIP - ACOUSTICS - VCH30 - ENG

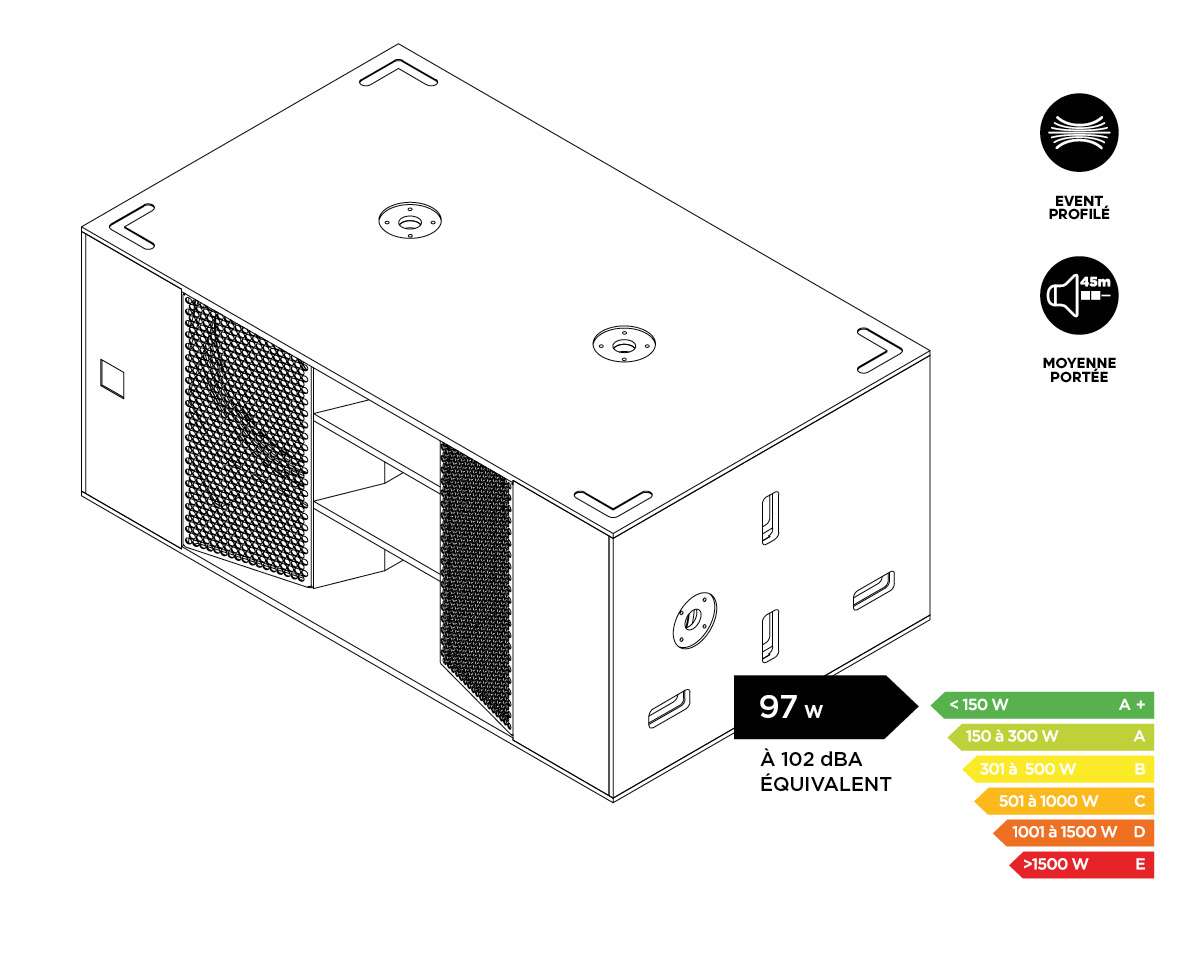

VTL218
—

+ High-Efficiency Subwoofer
Hybrid Band-Pass Load
+ Low Air Velocity
Maintains efficiency at high levels
+ designED for touring
Easy to handle
+ PSEUDO-OMNIDIRECTIONAL
Facilitates cardioid setups

The VTL218 is PikiP’s new dual 18-inch subwoofer. Its hybrid resonator loading system delivers unmatched efficiency across an extended frequency range, from 37 to 250 Hz [97 W at 102 dBA equivalent]. The resonators have been optimized using finite element modeling to reduce air velocity and maintain linearity even at high output levels. The 35 mm pole mounts make it perfectly compatible with the VCH30 module, whether in vertical or horizontal configuration. Its pseudo-omnidirectional dispersion facilitates cardioid setups. Speakon connectors allow power supply via a 4-core cable or two 2-core cables.
