Enhance efficiency without compromising listening experience
_

While preserving dynamics and precise listening, our speakers are designed to be more energy-efficient than market standards

Acoustic Modules
_

Horns are ubiquitous in nature: the epitome of natural and most efficient sound amplification. Their use, coupled with other technologies, is the most intuitive and evident approach we can take.

While preserving a sensational, dynamic, and precise listening experience, our modules are designed to be more energy-efficient than market standards.

Versatile, they adapt to all autonomous or energy-limited installations.

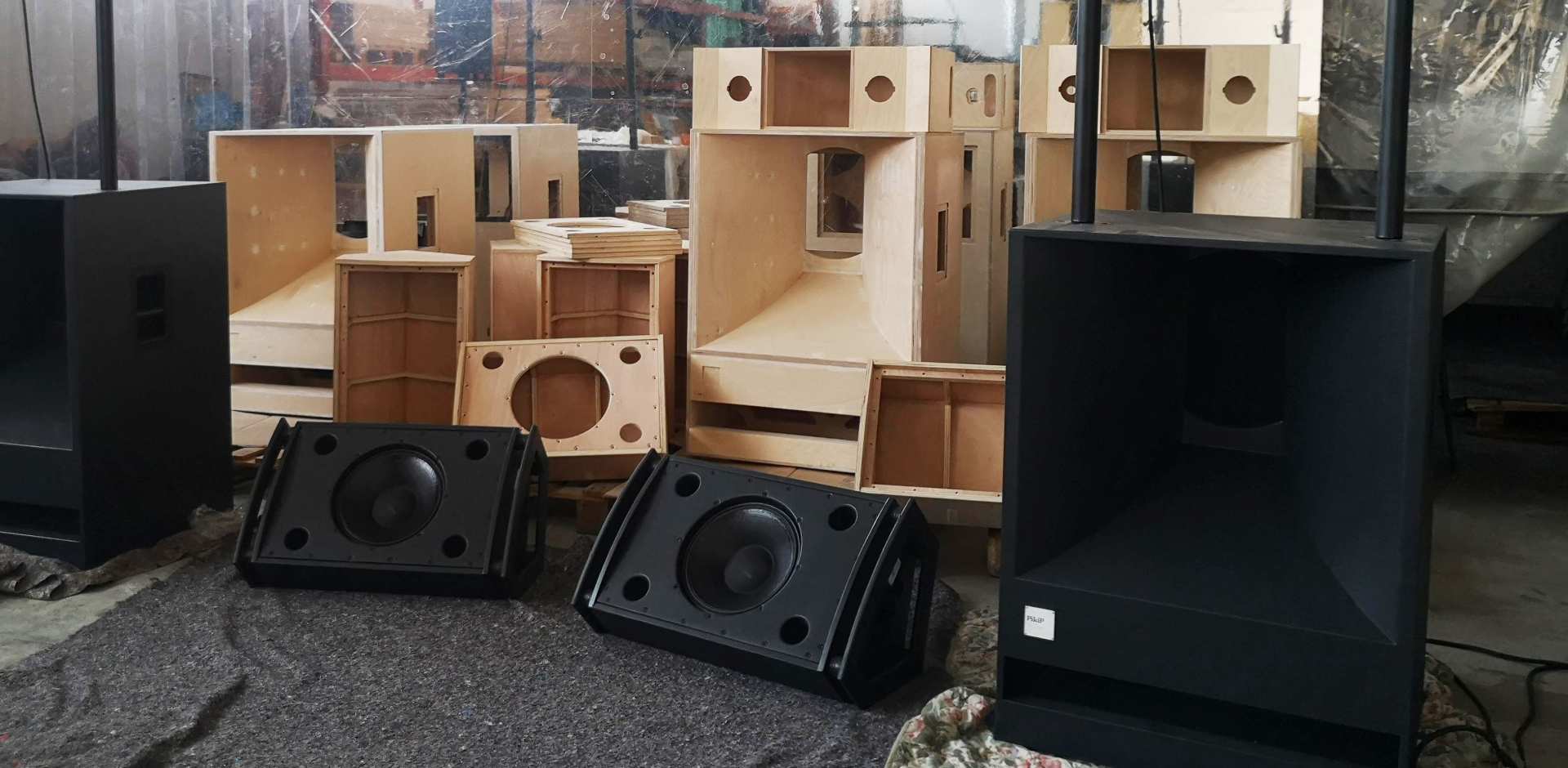

To ensure the best quality and reliability, all components come from European leaders in acoustics. The cabinetry and finishes are crafted in France, in our workshop.


Our acoustics technologies

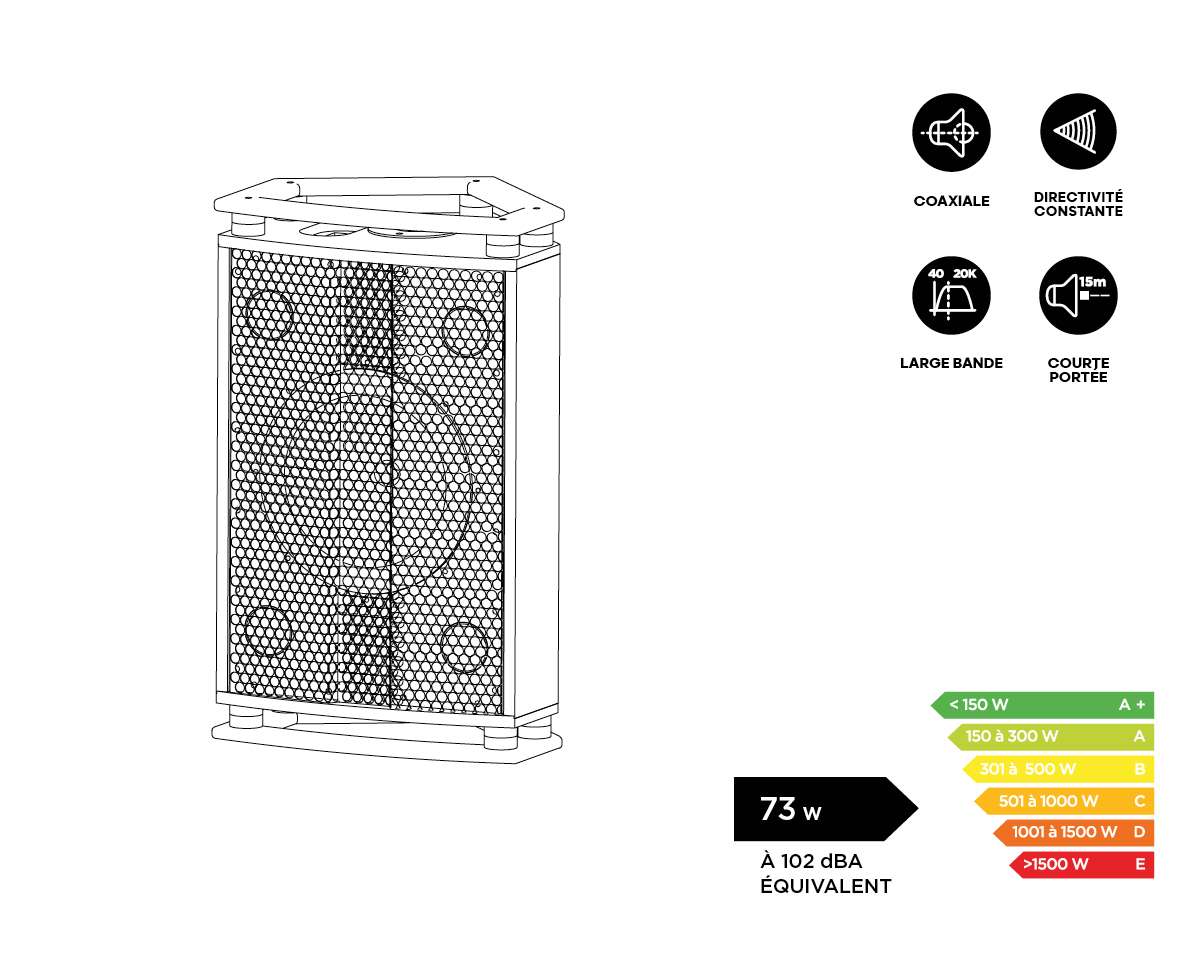

VCX12
—

+ VERSATILE USE
Footfill, fill, main coverage...
+ FULL-RANGE SPEAKER
12'' Electrodynamic driver + 2'' compression driver
+ COAXIAL SYSTEM
Single source: acoustic coherence and linearity
+ TOURING DESIGN
Lightweight, durable, easy to handle

This passive coaxial system is compatible with all amplifiers on the market and requires only one channel.
It retains the common feature found in all our products: efficiency, using minimal energy. Its design allows for pole mounting or placement at 30° and 45° angles on the ground. With its reinforced birch + okoumé plywood structure and wide peripheral handles, this module is lightweight and easy to handle

caractéristiques

Type :
Coaxial / Bass reflex
TRANSDUCERS :
12” - 3” Compression Driver
FREQUENCY RESPONSE :
68 - 18 000 Hz (+/-3dB)
CONTINUOUS POWER HANDLING :
700 W + 320 W (nominal power capacity + 3 dB)
SENSITIVITY :
100 dB (at 1 W constant, 1 m) 99 dB (at 2 V constant, 1 m)
MAX SPL :
127 dB SPL (@1 m, pink noise 6 dB crest factor)
Dispersion :
80° axisymétique (H° X V°/ -6 dB)
Impedance :
8 ohm
Dimensions (lxpxh) :
680x370x390mm
weight :
14kg

FICHES ETCHNIQUES

doc
FT - module - ACCOUSTIQUE - VCX12

VTL118
—

+ HIGH-EFFICIENCY SUBWOOFER
Hybrid bass-reflex with quarter-wave resonator
+ LARGE PROFILED VENT
Maintains efficiency at high levels
+ TOURING DESIGN
Easy transportation
+ PSEUDO-OMNIDIRECTIONAL
Facilitates cardioid setups

Bass is crucial, both for listening and power requirements. Its hybrid typology (Vented Transmission Line) offers the best in terms of energy efficiency, delivering fast and deep bass reproduction. Combined with our profiled vent technology that eliminates distortions at high levels, the listening experience remains impactful and energy-efficient [A+: 113W at 102 dBA*]. Weighing 48 kg with handles and 35 mm pole sockets, this model can be used as a bass reinforcement in various setups. The VTL118 is designed with a pseudo-omnidirectional pattern to facilitate cardioid gradient mounting.

caractéristiques

Type :
Hybrid Subwoofer: Quarter-wave resonator + bass reflex with profiled vent
TRANSDUCERS :
18” néodym driver
FREQUENCY RESPONSE :
35 - 125 Hz (+/-3 dB)
CONTINUOUS POWER HANDLING :
1400 W (nominal program power capacity + 3 dB)
SENSITIVITY :
105 dB (at 1 W constant, 1 m) 103 dB (at 2 V constant, 1 m)
MAX SPL :
134 dB SPL (@1 m, pink noise 6 dB crest factor)
Impedance :
8 ohm
Dimensions (lxpxh) :
800x610x680 mm
weight :
48kg

FICHES ETCHNIQUES

doc
FT - MODULE - ACCOUSTIQUE - VTL118

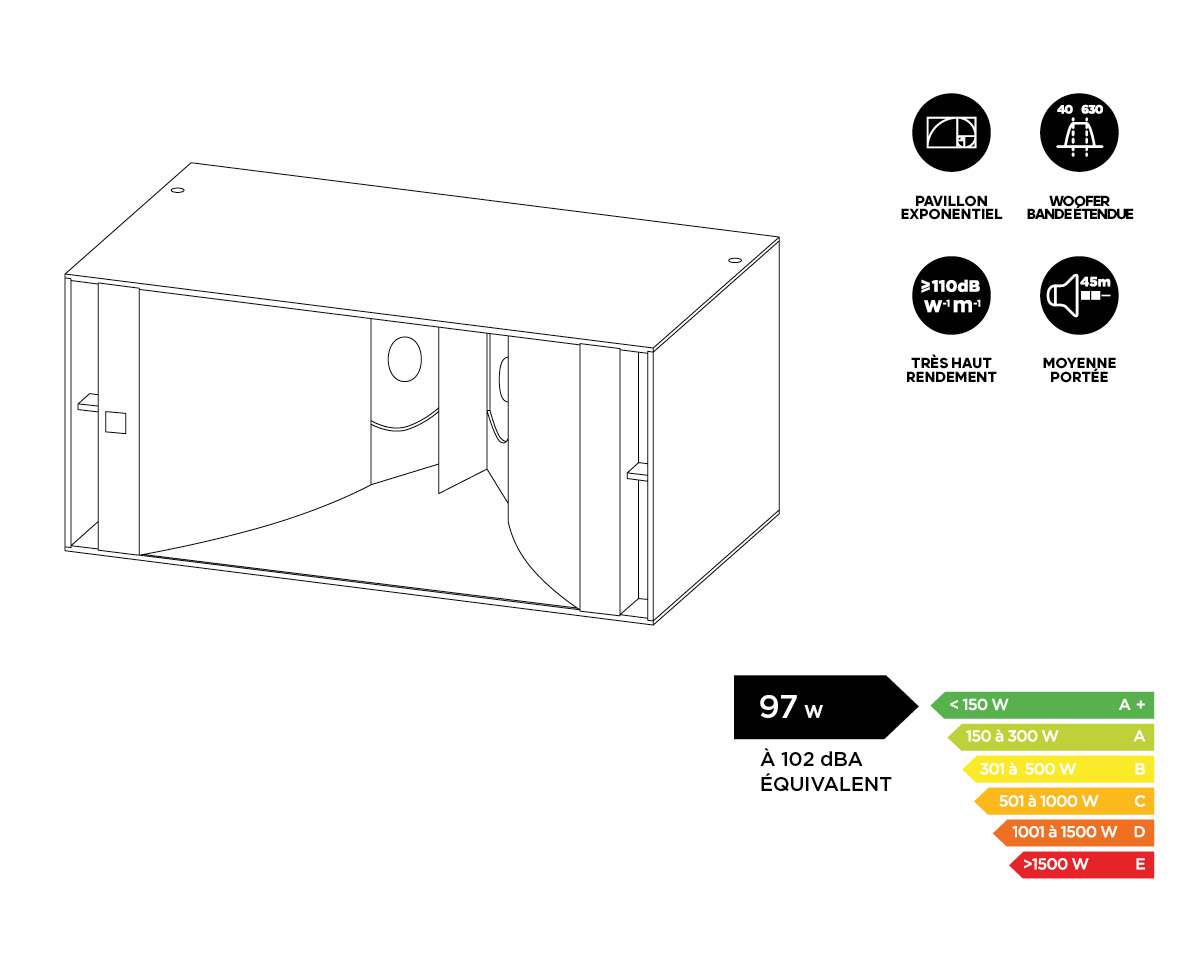

VDS215
—

+ DOUBLE 15INCH TRANSDUCER
High low frequency level - low comsuption
+ REAL DESCENT TO 40 Hz
Low particle velocity Bass Reflex
+ EXTENDED RANGE
Rises up to 800Hz
+ EXPONENTIAL HORN
Dynamic and precise kick and midrange

It pays tribute to the Voice of the Theatre - VOTT A7. La Voix du Soleil is a Double Extended Range Woofer offering impressive low-frequency pressure with punch and dynamics in the midrange. Focusing the essence of our acoustic R&D efforts, the actual efficiency of our VDS215 remains unmatched [A+: 97W at 102 dBA*]. Its hybrid typology comprises a low-velocity particle Helmholtz resonator to reduce turbulence and distortion on the vent. A short exponential front-loaded horn couples the two speakers, delivering highly precise low-mids.

caractéristiques

Type :
Double full-range woofer + bass reflex with profiled vent
TRANSDUCERS :
double 15’’ neodyme
FREQUENCY RESPONSE :
40-630 Hz (+/-3 dB)
CONTINUOUS POWER HANDLING :
2000 W (nominal program power capacity + 3 dB)
SENSITIVITY :
107 dB (at 1 W constant, 1 m) 105 dB (at 2 V constant, 1 m)
MAX SPL :
138 dB SPL (@1 m, pink noise 6 dB crest factor)
Impedance :
4 ohm
Dimensions (lxpxh) :
1500x850x700mm
weight :
70kg

FICHES ETCHNIQUES

doc
FT - MODULE - ACCOUSTIQUE - VDS215

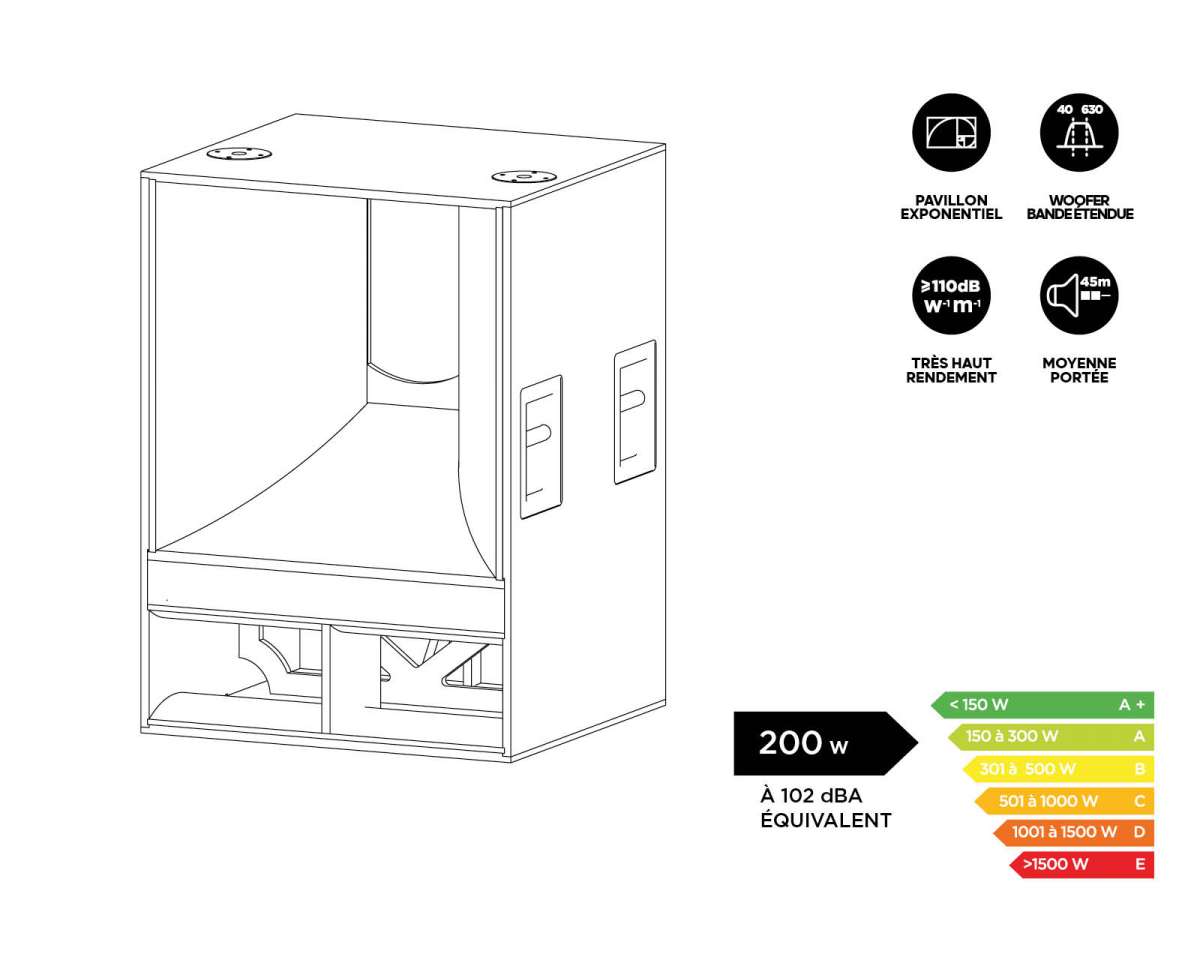

VDS115
—

+ EXPONENTIAL HORN
Dynamic and precise kicks and mids
+ REAL DESCENT TO 45 Hz
Profiled vent with low particle velocity
+ EXTENDED RANGE
Rises up to 800 Hz
+ TOURING DESIGN
Handles, rigging systems, pole mounts, skateboard wheels

The VDS115 is the touring version of the VDS. Lighter and more manageable than its larger counterpart, the VDS-115 delivers an incredibly dynamic midrange response with a linear descent down to 45Hz. Ideal for mobile setups and touring, the VDS115 weighs only 42kg. Its compact design facilitates easy transport and setup. Reinforced corners and contact surfaces make it compatible with the demanding constraints of touring.

caractéristiques

Type :
Full-range woofer + bass reflex with profiled vent
TRANSDUCERS :
15” néodym driver
FREQUENCY RESPONSE :
45 - 800 Hz (+/-3dB)
CONTINUOUS POWER HANDLING :
1000 W (nominal program power capacity + 3 dB)
SENSITIVITY :
104 dB (at 1 W constant, 1 m) 103 dB (at 2 V constant, 1 m)
MAX SPL :
133 dB SPL (@1 m, pink noise 6 dB crest factor)
Impedance :
8 ohm
Dimensions (lxpxh) :
680x610x950mm
weight :
42 kg

FICHES ETCHNIQUES

doc
FT - MODULE ACCOUSTIQUE - VDS115

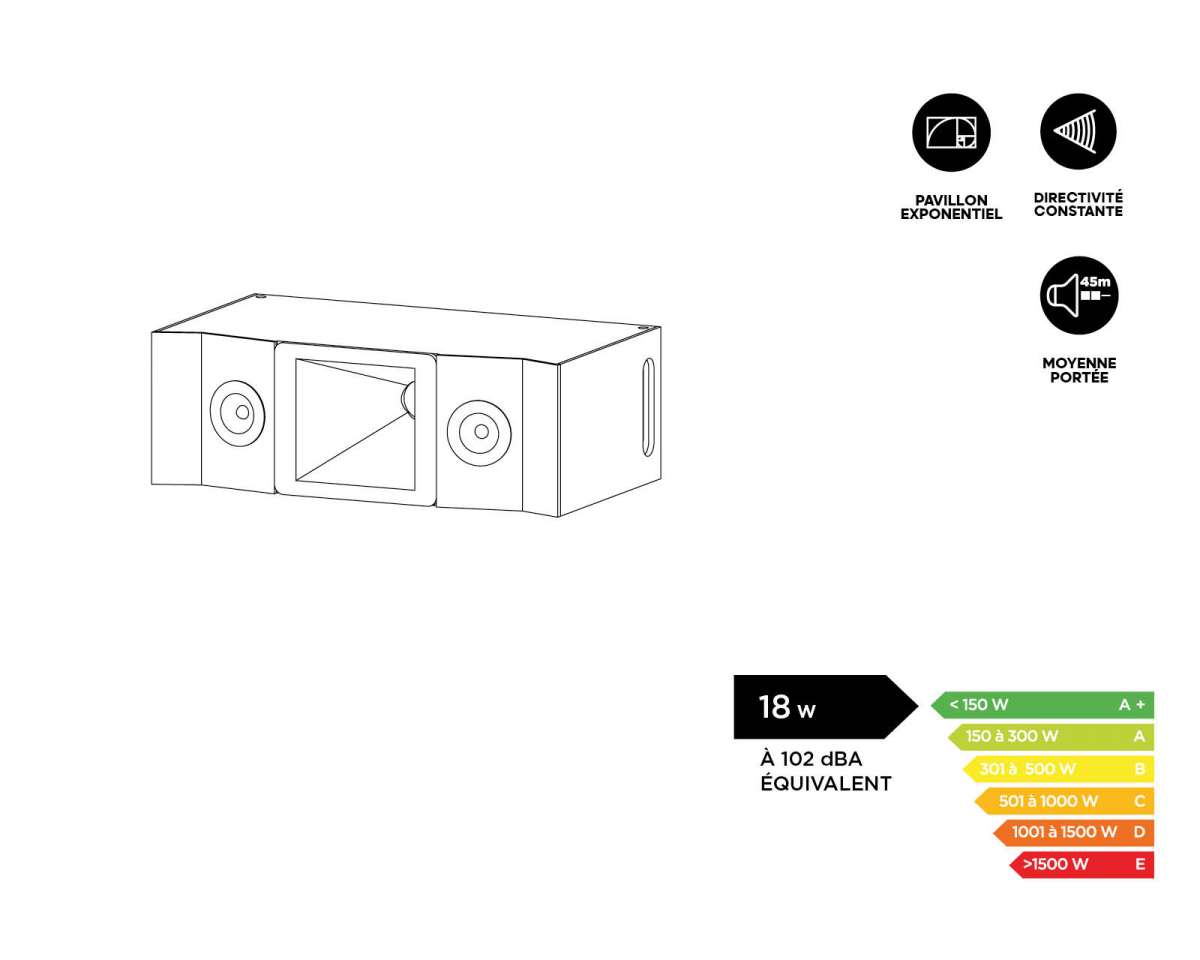

MT1
—

+ PLAYS DOWN TO 500 Hz
Easy crossover to MF speaker
+ CONSTANT DIRECTIVITY HORN LOADING
60° horizontal directivity
+ LOW DISTORTION AND VERY GOOD INTELLIGIBILITY
2’’ compression driver
+ IDEAL FOR TOURING
Handles, rigging system, speaker stand ready

The MT-1 is our speaker for high mids and highs: detailed and precise, it faithfully reproduces every nuance of the original message. Its design and filtering enable a descent down to 500Hz with minimal distortion even at high levels. Weighing 14kg with handles and 35mm pole sockets, this model adapts to both mobile and static installations.

caractéristiques

Type :
Mid-Top Pavillon et Tweeter
TRANSDUCERS :
Compression drivers 2’’ + 2 tweter 1,25’’
FREQUENCY RESPONSE :
500 - 20 000 Hz (+/-3dB)
CONTINUOUS POWER HANDLING :
540 W (nominal program power capacity + 3dB)
SENSITIVITY :
109 dB à 1 W, 1 m
MAX SPL :
138dB SPL (@1m, pink noise 6dB crest factor)
Dispersion :
60° x 40° (H° x V @-6 db depuis l’axe)
Impedance :
8 ohm
Dimensions (lxpxh) :
680x370x230mm
weight :
14kg

FICHES ETCHNIQUES

doc
FT - MODULE - ACCOUSTIQUE - MT1
