Riching energy freedom
_

Gain independence with our autonomous modules equipped with the latest technologies

Energy Modules
_

The presence of a functional electrical grid is not always as straightforward as it seems. Requests for connection or the implementation of a generator can be obstacles to project implementation. Our team is proud to offer its modern interpretation of freedom and energy independence through configurable modules tailored to your needs.


Our energy technologies

AEA (Amplification - Energy - Autonomy)

+ AC GENERATOR
Total autonomy for equipment
+ AMPLIFIER & DSP
Patented power optimization technology
+ SIMPLIFIED SETUP
DC/AC power and amplifiers consolidated in one rack
+ HYBRID CHARGE
Solar panels or main
+ MARKET STANDARDS COMPATIBLE
Configurable DSP for market-standard speakers

The AEA is an energy generator incorporating amplifiers that utilize our patented DUAL ARCHITECTURE POWER technology. It features a VICTRON inverter and secure LiFePO4 storage to power all equipment. Our Class D amplifiers ensure high power density with very high efficiency and reuse of reactive power returned by the speaker. They are AES3 compatible to simplify wiring management and reduce the number of conversions.
We provide DSP configuration reproductions and presets from manufacturers to amplify passive speakers on the market. Its structure allows for efficient setup and logistics optimization, without the need for electrical connection. All electronics are housed in a standard 19'' rack on "Silent Bloc".

caractéristiques

OUTPUT POWER :
4 to 16 channels 700W RMS @8 ohms (EIAJ 1 kHz, 1% THD)
GAIN :
30 dB
AVAILABLE AC :
1200 W – 2400 Wc by AEA
STORAGE :
3500Wh LiFePO4 by AEA
SOLAR CHARGING (10 TO 100%) :
6h
MAIN CHARGING (10 À 100%) :
6h
CONNECTEURS AUDIO :
2 XLR in / 2 XLR out / SPEAKON 2 et 4 pts.
CONNECTEURS PUISSANCE :
3 PC output type Shuko / 1 POWERCON AC in / 1 POWERTWIST DC in
structure :
Rack shock proof + Standard 10 U

DATASHEET

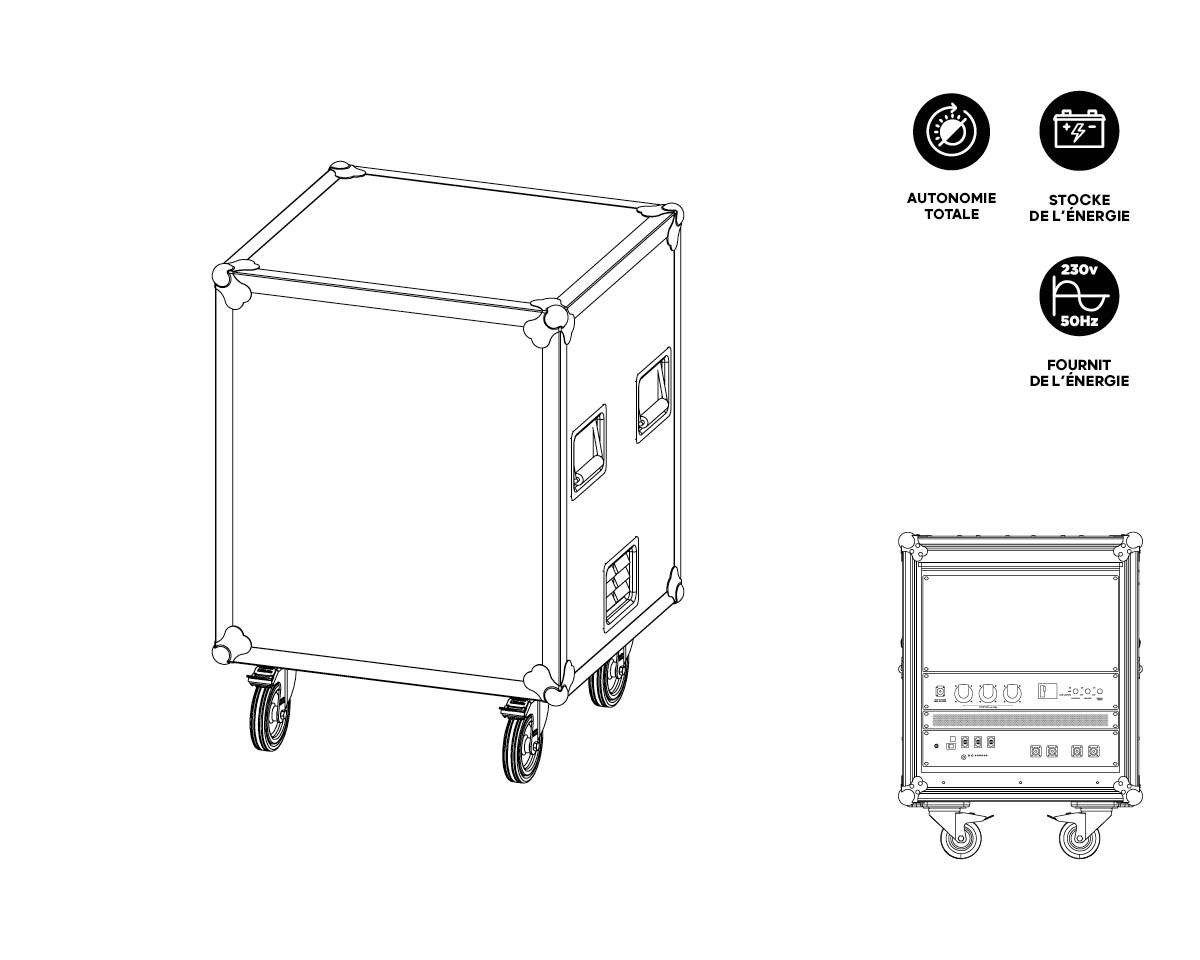

SE (ENERGY STATION)

+ BATTERY-POWERED GENERATOR
High AC power available anywhere
+ EVENT DESIGN
Rack format on wheels familiar to technicians
+ POWER STACKING
Up to 32A three-phase available
+ GRID SWITCHING
Automated grid injection and withdrawal
+ HYBRID RECHARGE
Rechargeable through solar or grid power
+ MAINTENANCE-FREE
Reliability from European leaders

Our energy station is a silent and eco-friendly alternative to traditional thermal generators. Specifically designed for events and mobile operations, our energy station allows for simplified technical deployment without the need for cable laying or safety commissioning. This true energy storage powerhouse is equipped with a VICTRON inverter and high-energy-density LiFePO4 storage, capable of powering high-demand equipment for hours without any smoke, vibration, or noise.

caractéristiques

NOMINAL POWER :
1200 W / 3000 W / 6000 W
PEAK POWER :
2400 Wc / 5500 Wc / 9000 Wc
STORAGE :
2400 Wh / 4800 Wh / 7000 Wh
FONCTION :
Triphasé / ESS / UPS / Power Assist
CONNECTOR :
PC16 / P17 32A MONO (2P+T) / P17 32A TETRA (3P+N+T)
SOLAR CHARGING (10 TO 100%)* :
2 h - 4 h - 6 h
MAIN CHARGING (10 À 100%) :
4 h - 2 h - 3 h
AUTONOMY (without SOLEIL) for 500W :
5 h - 10 h - 14 h
SUPERVISION :
Bluetooth / Portail web (4G) / Alarme sonore

DATASHEET

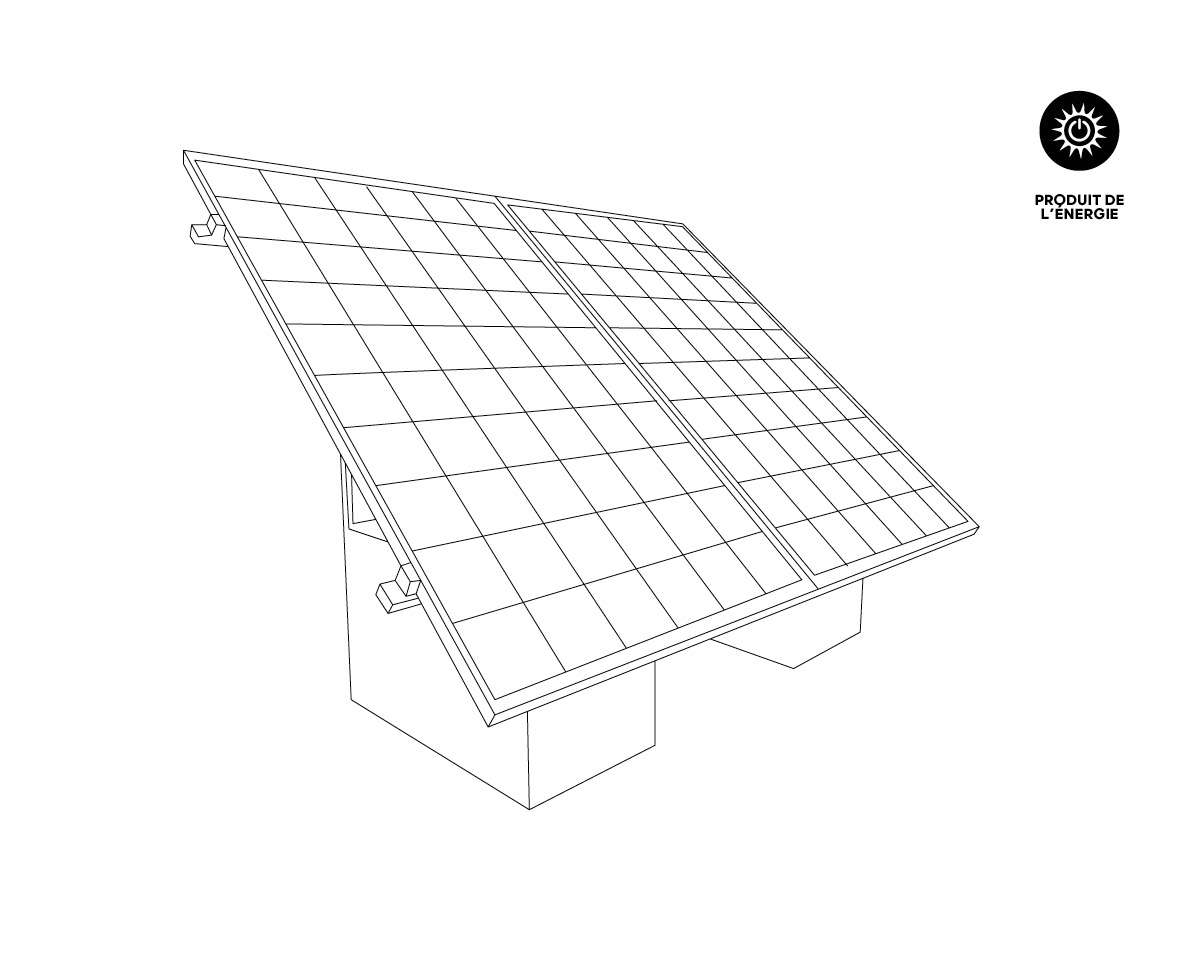

Solar Platform

+ AUTONOMY EXTENSION
Solar recharge during use
+ QUICK INSTALLATION
Pre-assembled weighted system
+ STABLE AND ROBUST
Galvanized steel trough ballasting system
+ MODULAR
Stackable for increased production

The solar platform enables the SE, the AEA, or our PikiPstage solution to become a true photovoltaic power production center. It provides the ability to recharge our products anywhere, without relying on external energy sources. The solar platform adapts to the logistical constraints of events with its lightweight and pre-assembled structure. For permanent installations, we can assist you and provide the appropriate equipment.

caractéristiques

POWER :
400 Wc cumulative
OPEN CIRCUIT VOLTAGE :
Voc: 42.6 V or 85.2 V
Structure :
Aluminum tray
Dimension (lxpxh) :
2000 x 1200 x 1000 mm (1 unit / 2 solar pannel)
weight :
50 Kg

DATASHEET
