DJ booth autonome
—

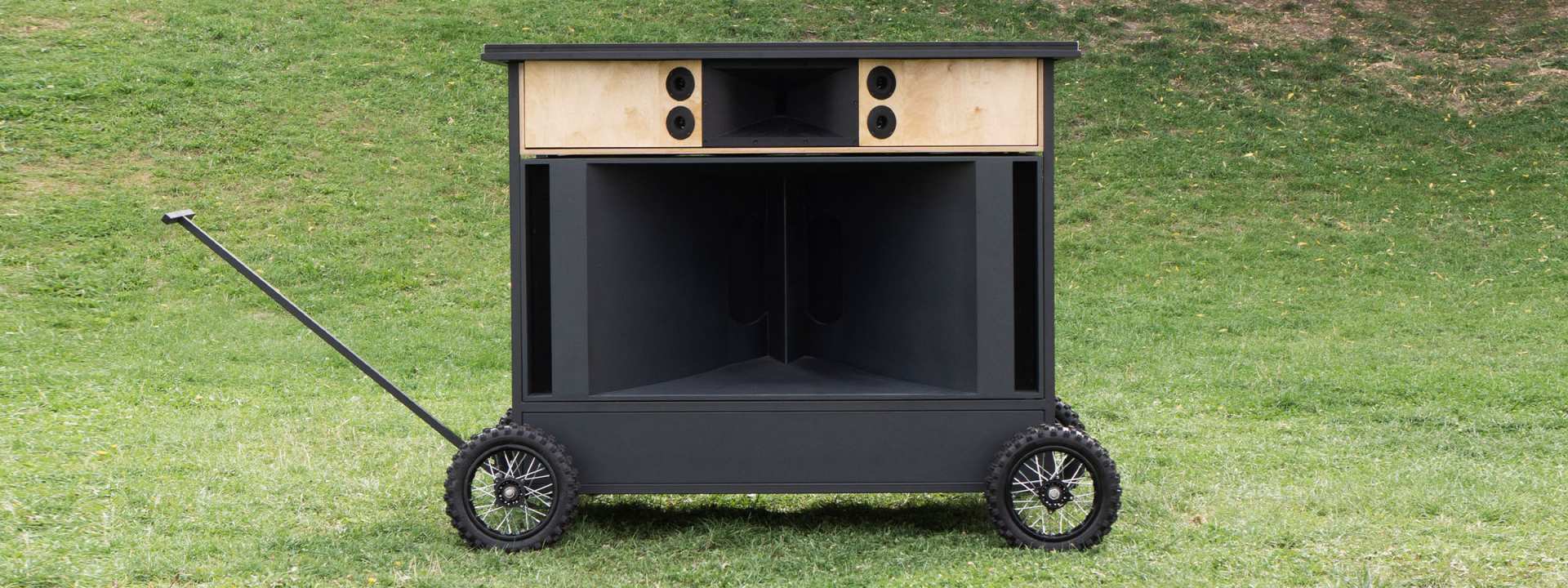

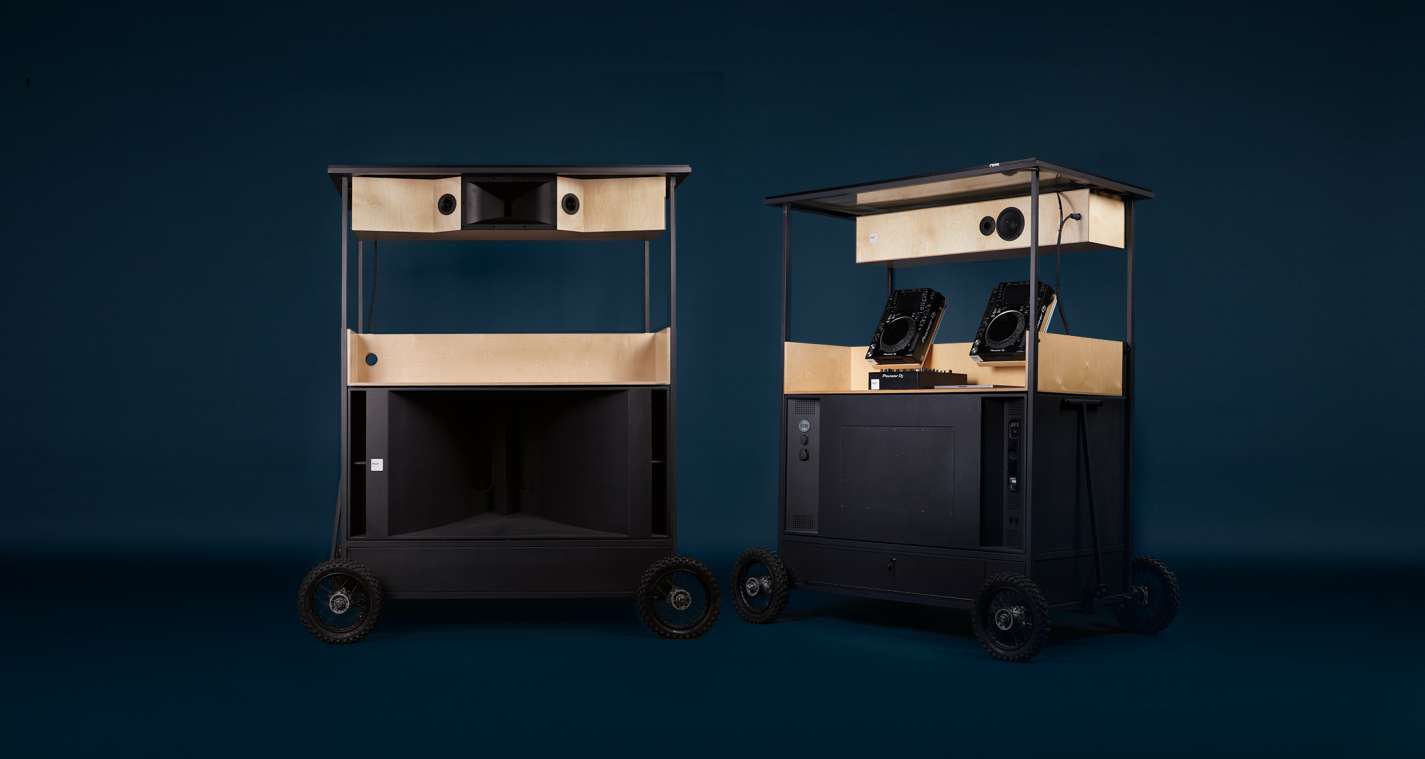

La solution Pikip-booth est une véritable scène DJ tout en un, prête à installer et totalement autonome en énergie. Son alimentation solaire et les batteries assurent l’apport en énergie jour et nuit. L’objet à lui seul réunit l’ensemble des savoir-faire de l’entreprise : énergie, acoustique et mobilité.

Disponibilité

Toutes les solutions

caractéristiques

audience :

jusqu’à 500 pers. par machine - 900 m2

réponse :

40Hz - 20kHz (+/- 3dB)

SPL max :

138 dB à 1m

Acoustique :

BR / pavillon expo / point source / couverture homogène étendue

Amplification :

classe D / 3 canaux / DSP / limiteurs / 4 preset

Monitoring :

monitoring BT / 700Wc @230V pur sinus / reche solaire et/ou secteur

Fiches techniques

Fiche Technique - Solution PikiP-booth - FR

Fiche Technique - Module VDS - FR

specificitées

Energy and amplification
_

The Pikip booth is a standalone product : energy production, storing and distribution (amplifiers and inverter) are embedded.
Complete autonomy is obtained thanks to the solar panels sizing, to the recycled lead batteries and the pure sine wave VICTRON inverter (which delivers 230V at 50Hz power for artists gears, such as turntables or mixers).
With our know-how and our patented technology, we offer high-efficiency amplification architectures. By using Powersoft components and their Green Audio Power technology, we meet the highest audio quality standards.

Acoustics
_

The system front-of-house includes our very low consumption speakers, allowing for excellent autonomy and balanced and accurate sound reproduction.
The VDS module, dual transducer hybrid speaker impresses by its response and its efficiency. This large band woofer is among the most efficient on the market. Used together with the MT-1 module, it results in a dynamic and precise sound, with good directivity homogeneity.
A monitoring sub system for the artist is included, and two SpeakON outputs are available to add more speakers if needed (8ohms min per channel).
4 presets are available, to suit any listening environment (near or far field listening, bass loaded music or not).

Frame
_

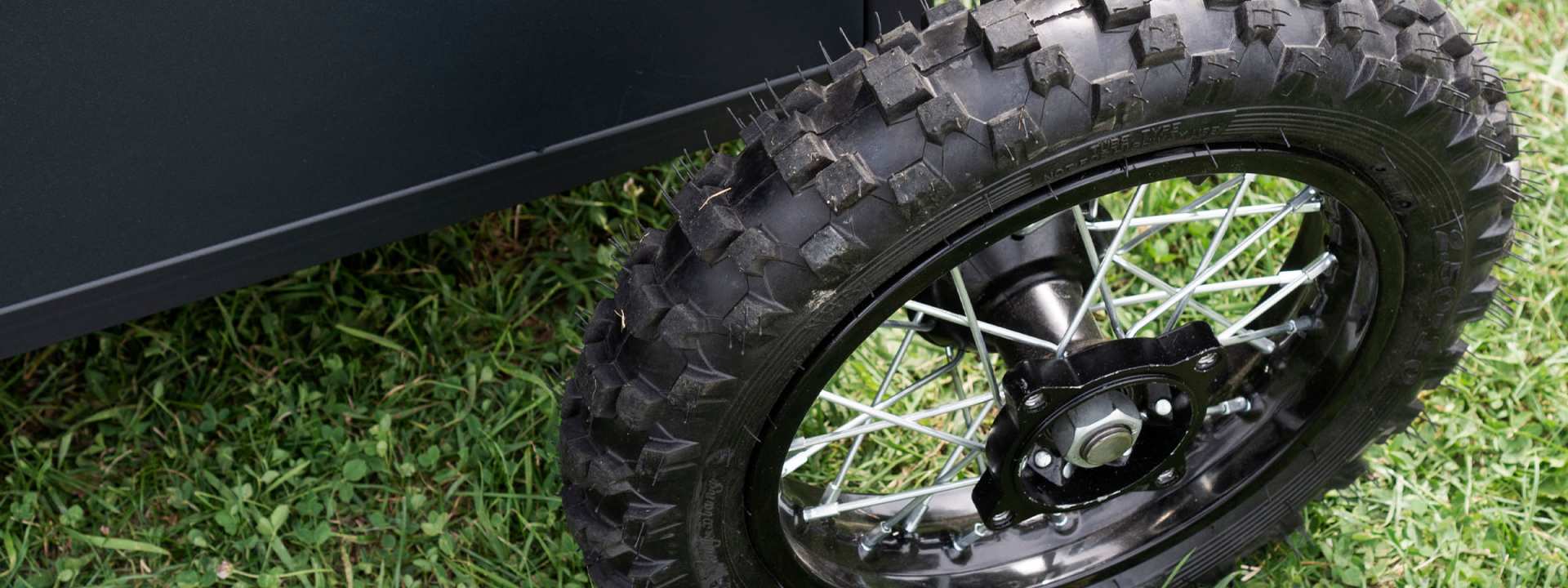

The bespoke designed exoskeleton makes it easy to handle and use. It comprises 10inch wheels and a pull bar so one perso is enough to move it around, on any type of ground. The large desktop allows for a complete dj set-up (mixers, laptops, turntable…). Power switch is secured in a lockable technical compartment, that also offers extra storing space.
